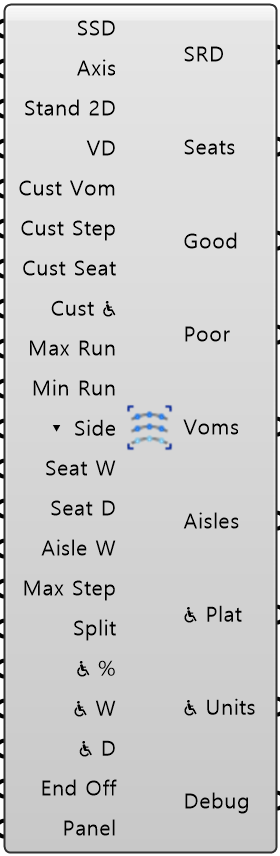

Custom SeatSEAT-002

Inputs

• Stand SectionsSSDThe tier sections, passed along the chain. Wire from Stand 2D SSD
• AxisAxisThe axis system from Stand 2D. Without it, curves are found from turn angles
• Stand 2DStand 2DThe tread rings seats are placed on. Wire from Stand 2D
• VomitoryVDOptional. How each tier gets down to the concourse - Vom Type Mode, drops, landings and clearances from Vomitory. Only these settings are used: your Custom Voms stay exactly as drawn, and each one is given its tier's stair, stepped or ramp descent. Wire from Vomitory VD
• Custom VomsCust VomOne branch per tier. Draw each opening over the treads it spans: a closed rect, a band bent along the rings (4 corners, plus 2 per bend - split into rects, doors at both ends of the band - Vom 3D's Band Opening Mode can keep one), or a U-shaped outline (arms at or inside the bar's ends - split into arm, bar and arm). Two rects may share a segment only on different rows
• Custom StepsCust StepOne branch per tier. Feed baked Aisles cells back, or draw your own - open curve = the aisle centerline, closed rect = one cell placing the aisle and its tread range
• Custom SeatsCust SeatOne branch per tier. A tier given seats here is only judged, not laid out
• Custom Wheelchair SpacesCust ♿One branch per tier. Draw each accessible space - wheelchair and companion alike - exactly where you want it. The rects are kept as drawn, seats underneath are removed, and automatic wheelchair units are replaced by yours - the accessible row itself stays cleared and merged
• Max Seats Per RunMax RunLongest run allowed when spectators can leave from both ends (default 28)
• Min Seats Per RunMin RunShortest run worth keeping. Anything shorter is flagged POOR (default 4)
• Aisle Side Mode▾ SideWhere the end aisles go: BOTH, LEFT, RIGHT or NONE - one per tier, the last value fills the rest (default BOTH)
• Seat WidthSeat WWidth of one seat (default 500 mm)
• Seat DepthSeat DDepth of one seat (default 500 mm)
• Aisle WidthAisle WClear width of each aisle (default 1000 mm)
• Max Riser StepMax StepComfortable rise per aisle step. Taller risers get up to 2 steps (default 180 mm)
• Aisle Split ModeSplitAdd a mid aisle to runs still too long. Tiers with Custom Steps use only your aisles (default true)
• Wheelchair Ratio Target♿ %Target share of wheelchair spaces, percent of capacity. Reporting only (default 0)
• Wheelchair Space Width♿ WWidth of one wheelchair space. 900 mm follows FIFA and EN 13200-1, 36 in follows ADA (default 900 mm)
• Wheelchair Space Depth♿ DDepth of one wheelchair space. 1400 mm follows FIFA and EN 13200-1, 48 in follows ADA (default 1400 mm)
• End OffsetEnd OffHow far each open end of the stand moves past its end axis - one value for both ends. Positive carries the stand on in a straight line and fills the new length with standard seats, negative pulls the whole stand back (seats, treads and body). Use + on one stand and - on its neighbor to meet on the same line. 0 = end on the axis. A closed bowl has no open ends (default 0)
• Panel ValuesPanelEvery value from Input Panel, as one bundle. Anything you wire in yourself wins over it

Outputs

• Seat ResultSRDThe whole 2D layout as one object. Wire into Cut, Stand 3D Plus or Vom 3D
• Seat RectsSeatsOne branch per tier. Every seat as a rectangle in plan
• Good Seat RectsGoodOne branch per tier. Seats in runs that meet the egress rules
• Poor Seat RectsPoorOne branch per tier. Seats in runs that break the rules
• Vom RectsVomsOne branch per tier. Your vomitory footprints as actually applied
• AislesAislesOne branch per tier. The aisle floor as cells, tread by tread - intermediate steps where the riser needs them (up to 2), one full-tread cell where it does not
• Wheelchair Platforms♿ PlatOne branch per tier. The level platform an accessible row sits on
• Wheelchair Units♿ UnitsOne branch per tier. Two rects per unit - wheelchair space, then companion seat
• DebugDebugDeveloper diagnostic output for tracking down bugs. Copy this when reporting a problem

What it does

A tier given all three of vomitories, aisle cells and seats is taken as complete, and Custom Seat adds nothing of its own there - no automatic aisle beside a vomitory and no aisle carried up to the top row - so every aisle you want has to be drawn. Aisle cells drawn inside a vomitory passage or its entry band are removed, with an orange warning that gives the row and position. A tier missing any of the three is filled in as before, with one exception: once you draw aisle cells on a tier, they are its only aisles. No automatic aisle is added there, and a run still longer than Max Seats Per Run shows in Poor Seat Rects with a white remark that gives the row and position - it is your layout to judge, not an error. Wheelchair spaces are optional either way. A vomitory band bent along the rings opens at both of its ends; which end keeps its door is chosen on Vom 3D, with Band Opening Mode.
