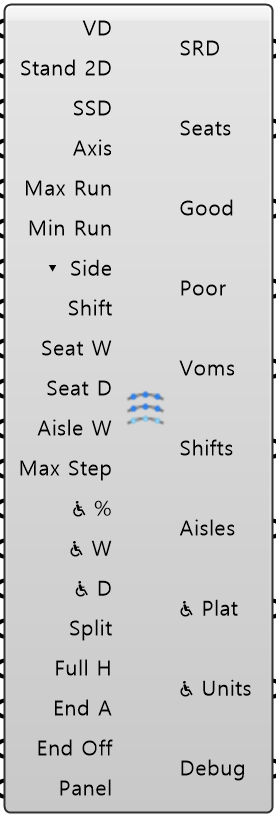

SeatSEAT-001

Inputs

• VomitoryVDThe vomitories seats must avoid. Wire from Vomitory VD
• Stand 2DStand 2DThe tread rings seats are placed on. Wire from Vomitory
• Stand SectionsSSDThe tier sections, passed along the chain. Wire from Vomitory SSD
• AxisAxisThe axis system, passed along. It carries the axis numbers Cut refers to
• Max Seats Per RunMax RunLongest run allowed when spectators can leave from both ends (default 28)
• Min Seats Per RunMin RunShortest run worth keeping. Anything shorter is flagged POOR (default 4)
• Aisle Side Mode▾ SideWhich side of a tier gets a stepped aisle: BOTH, LEFT, RIGHT or NONE - one per tier. This is about walking up and down, not about the open ends - for those see End Aisle Mode (default BOTH)
• Vom ShiftShift1 = let vomitory centerlines slide along straight runs to cut seat stubs (default 0)
• Seat WidthSeat WWidth of one seat - this sets how many fit per row (default 500 mm)
• Seat DepthSeat DDepth of one seat (default 500 mm)
• Aisle WidthAisle WClear width of each aisle (default 1000 mm)
• Max Riser StepMax StepComfortable rise per aisle step. Taller risers get up to 2 steps (default 180 mm)
• Wheelchair Ratio Target♿ %Target share of wheelchair spaces, percent of capacity. Reporting only (default 0)
• Wheelchair Space Width♿ WWidth of one wheelchair space. 900 mm follows FIFA and EN 13200-1, 36 in follows ADA (default 900 mm)
• Wheelchair Space Depth♿ DDepth of one wheelchair space. 1400 mm follows FIFA and EN 13200-1, 48 in follows ADA (default 1400 mm)
• Aisle Split ModeSplitAdd a mid aisle to any run still too long. Off leaves them alone and flagged (default true)
• Aisle Full HeightFull HOn = the aisle runs the full tier height, off = only from where the row gets too long Default true.
• End Aisle ModeEnd AOn = leave a walking strip along each open end of a run instead of seats, so spectators can get out sideways. Off = seat right up to the end (default false)
• End OffsetEnd OffHow far each open end of the stand moves past its end axis - one value for both ends. Positive carries the stand on in a straight line and fills it with seats, negative pulls the whole stand back (seats, treads and body). Use + on one stand and - on its neighbor to meet on the same line. 0 = end on the axis. A closed bowl has no open ends (default 0)
• Panel ValuesPanelEvery value from Input Panel, as one bundle. Anything you wire in yourself wins over it

Outputs

• Seat ResultSRDThe whole 2D layout as one object. Wire into Cut, Stand 3D Plus or Vom 3D
• Seat RectsSeatsOne branch per tier. Every seat as a rectangle in plan
• Good Seat RectsGoodOne branch per tier. Seats in runs that meet the egress rules
• Poor Seat RectsPoorOne branch per tier. Seats in runs that break the rules - these are what to fix
• Vom RectsVomsOne branch per tier. The vomitory footprints as actually used here
• Vom ShiftsShiftsOne branch per tier. How far each vomitory slid, 0 = not moved
• AislesAislesOne branch per tier. The aisle floor as cells, tread by tread - intermediate steps where the riser needs them (up to 2), one full-tread cell where it does not
• Wheelchair Platforms♿ PlatOne branch per tier. The level platform an accessible row sits on
• Wheelchair Units♿ UnitsOne branch per tier. Two rects per unit - wheelchair space, then companion seat
• DebugDebugDeveloper diagnostic output for tracking down bugs. Copy this when reporting a problem
