Table InIO-005

Reads the workbook's input pages and gives you the values to build from. Wire the workbook reference and press run. Values are looked up by column and key name, so inserting rows or reordering columns in the spreadsheet is safe. What was read is stored with the Grasshopper file, so the canvas keeps working without pressing run again.

1Plan & setup
2Section
32D layout
43D solids
5Analysis

core Table 2 in · 10 out

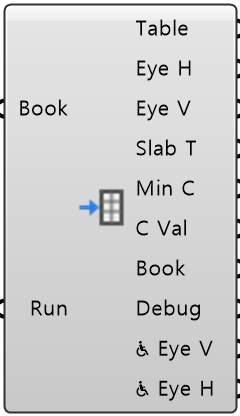

Fig. 1 — PortsReads left, writes right
Table In component in Grasshopper
Book Object · itemWire from Google Workbook or Excel Workbook
Run Boolean · itemWire a Boolean Button and press it to read
Table Data TableNumber · treeOne branch per step: row index, tread depth, riser height
Eye Horizontal Offset Eye HNumber · itemHow far back from the nosing the eye sits
Eye Vertical Offset Eye VNumber · itemEye height above the tread
Slab Thickness Slab TNumber · itemThickness of the stand slab
Minimum C-Value Min CNumber · itemSmallest acceptable C-value
C-Value Mode C ValText · itemSTANDARD or VARIABLE_CORNER
Book Object · itemThe whole workbook as read
Debug Text · itemDeveloper diagnostic output for tracking down bugs
Wheelchair Eye Vertical Offset ♿ Eye VNumber · itemEye height above the platform for a wheelchair user
Wheelchair Eye Horizontal Offset ♿ Eye HNumber · itemHow far back from the nosing a wheelchair user's eye sits

Colored ports carry the chain from one component to the next. The rest are values you set once.

Inputs

  • BookBookWire from Google Workbook or Excel Workbook. Each workbook has its own input pages, so switching it changes what is read
  • RunRunWire a Boolean Button and press it to read. An ordinary solve reads nothing and keeps the last values Default false.

Outputs

  • Table DataTableOne branch per step: row index, tread depth, riser height. Blank rows are left out
  • Eye Horizontal OffsetEye HHow far back from the nosing the eye sits
  • Eye Vertical OffsetEye VEye height above the tread
  • Slab ThicknessSlab TThickness of the stand slab
  • Minimum C-ValueMin CSmallest acceptable C-value
  • C-Value ModeC ValSTANDARD or VARIABLE_CORNER
  • BookBookThe whole workbook as read. For diagnostics and for columns without a port
  • DebugDebugDeveloper diagnostic output for tracking down bugs. Copy this when reporting a problem
  • Wheelchair Eye Vertical Offset♿ Eye VEye height above the platform for a wheelchair user
  • Wheelchair Eye Horizontal Offset♿ Eye HHow far back from the nosing a wheelchair user's eye sits. -1 = same as seated
